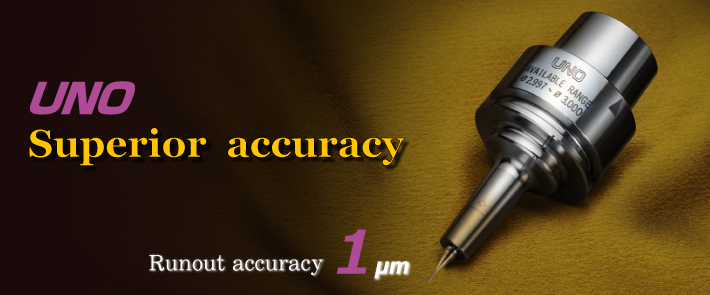

UNO
To see the special features of our Shrink-fit holder SLIMLINE
Submicron holder
Micromachining
Precise finishing application
Stable run-out accuracy
Machining quality improvement
Positioning accuracy improvement
The hole positioning accuracy improves when the tool holder run-out accuracy is smaller.
Longer cutter life
In small-diameter cutting tools, run-out accuracy largely influences a cutting tool’s life.
Eye-mark (▲) at the highest run-out direction.
Delivered with the accuracy inspection sheet.
Usable tools
Tool shank diameter
The usable tool shank diameter is marked on the flange unit of holder. For h5/h6 shank accuracy, use a tool having shank diameter within the range of the marked figure after measuring the tool shank.
Recommended cutting tools
Dimensions Data download
In order to view documents in PDF format, Adobe Reader® is required.
You can downolad the latest version of Adobe Reader® for free from the Adobe site.
Cutting movie
